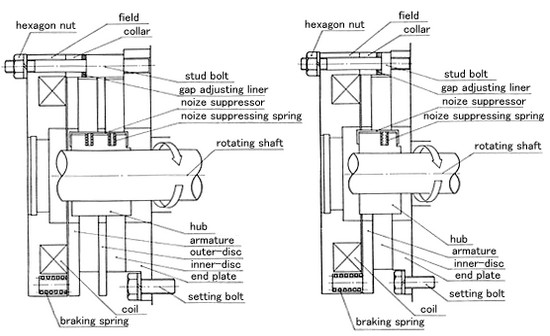

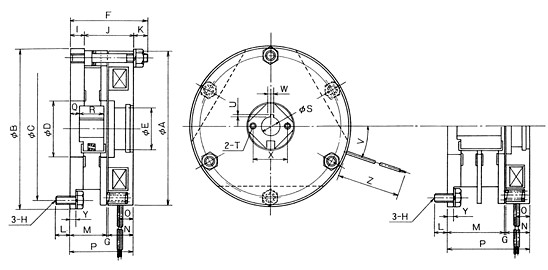

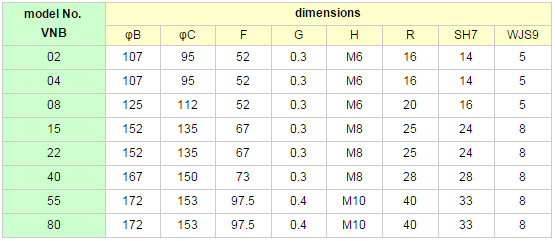

Osaki Brake VNB series VNB-2, VNB-4, VNB-8, VNB-15, VNB-22, VNB-40, VNB-55, VNB-80
| characteristics | model No. | ||||||||
| 2 | 4 | 8 | 15 | 22 | 40 | 55 | 80 | ||
| rated torque | Nm | 2 | 3.7 | 7.5 | 15 | 22 | 37 | 55 | 75 |
| rated voltage | DC V | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| coil resistance | Ω | 388 | 388 | 299 | 226 | 226 | 201 | 201 | 201 |
| (20°C) | |||||||||
| coil current | A | 0.23 | 0.23 | 0.3 | 0.4 | 0.4 | 0.45 | 0.45 | 0.45 |
| (20°C) | |||||||||
| allowable braking energy before gap adjustment | MJ | 37 | 37 | 60 | 75 | 75 | 105 | 308 | 308 |
| allowable total braking energy | MJ | 220 | 220 | 360 | 450 | 450 | 630 | 840 | 840 |
| muximum safety speed | r/min | 1800 | |||||||
| weight | kg | 1.9 | 1.9 | 2.6 | 5.1 | 5.1 | 6.9 | 8.7 | 8.7 |
| suitable power unit | HD-12SY | HD-100M | HD-110M3 | ||||||
